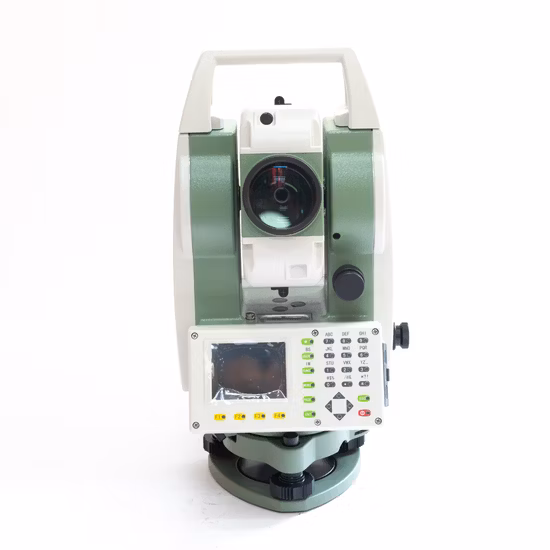

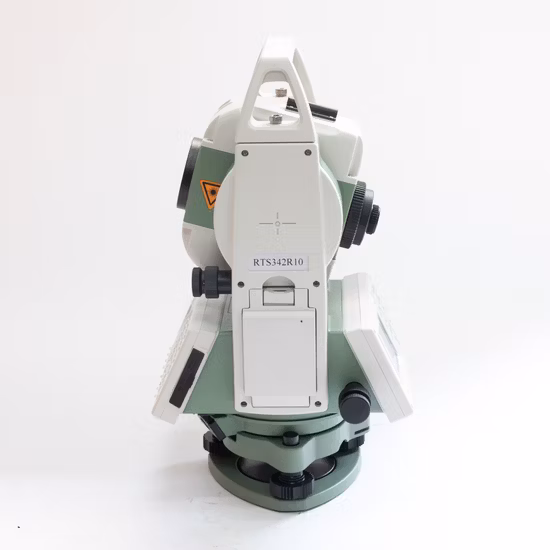

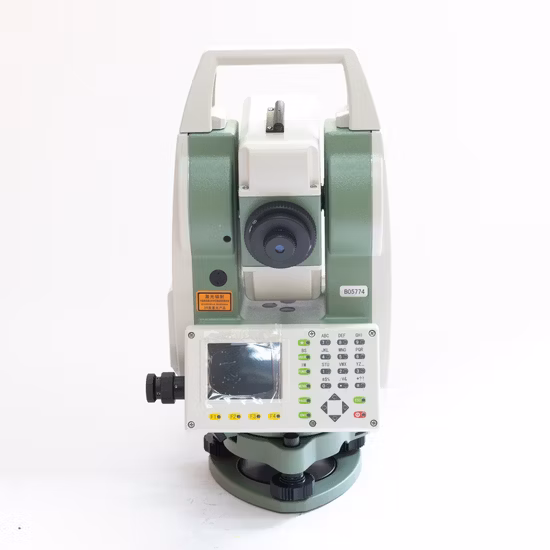

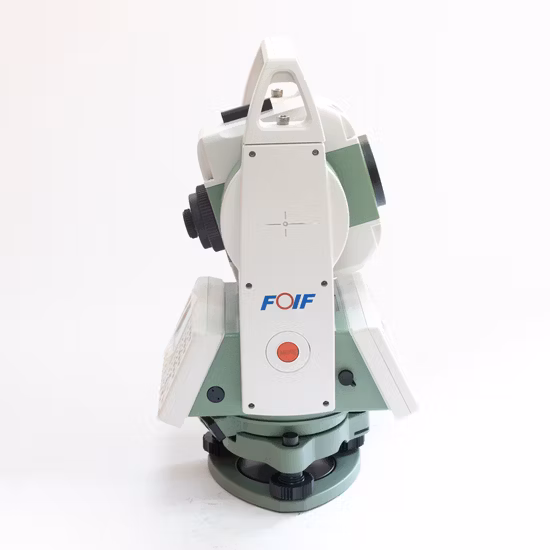

Wonderful Foif Rts342

Overview

Basic Info.

Model NO.	FOIF RTS-342 R10
HS Code	9015800090
Production Capacity	5000

Product Description

Product Description

1. Prism-free measuring range;2. Laser pointing, automatically open when not ranging,which is convenient for aiming at the target in a dark environment;3. Double-sided color QVGA display;4. Laser plummet, clearly visible in sunlight, adjustable brightness;5.With 4G memory; support SD card expansion.

Detailed PhotosProduct Parameters

Distance measurement
RTS342	5000m/single prism
RTS342R5	500m/non-prism; 800m/reflector; 5000m/single prism
RTS342R6	600m/non-prism; 1000m/reflector; 5000m/single prism
RTS342R8	800m/non-prism; 1200m/reflector; 6000m/single prism
RTS342R10	1000m/non-prism; 1200m/reflector; 6000m/single prism
Precise measurement	0.3S
Precision	±(2mm+2×10-6·D)
Minimum display	0.1mm
Angle measurement
Angle measuring method	Absolute encoding (code disc diameter 79mm)
Accuracy	2″
Minimum reading	0.1″/1″/5″
Telescope
Image	Erect
Field of view	1°30′
Objective lens effective aperture	Φ48mm
Resolution	3″
Magnification	30X
Shortest sight distance	1.0m
Compensator
Compensation method	Double axis compensation
Compensation range	±6′
Power
Voltage	7.4V DC(rechargeable lithium-ion battery)
Working time	≥ 12 hours
Others
Display	2.7-inch color display on both sides
Communication	RS-232C/USB/SD card copy
Waterproof and dustproof	IP66
